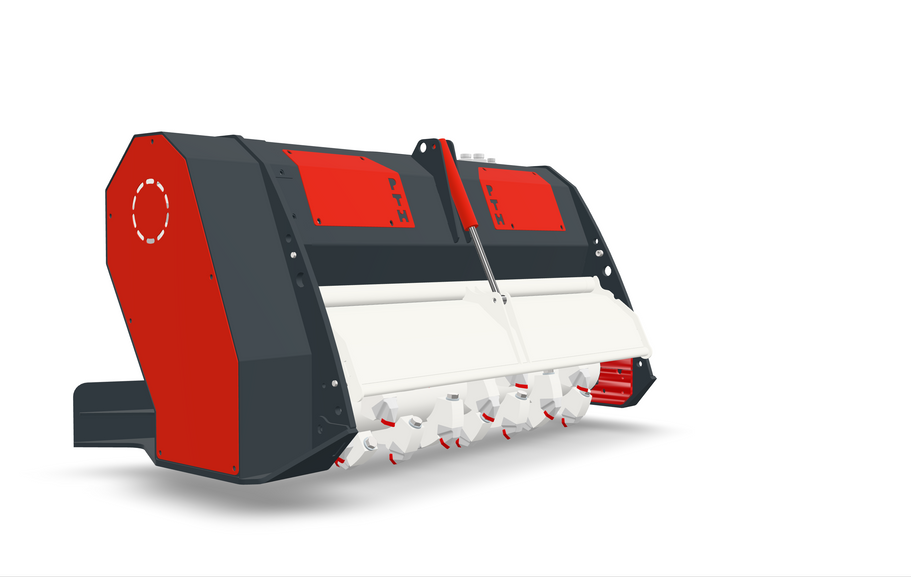

The PTH MicroCrusher Hydraulic 1150 is a compact, heavy-duty attachment designed for crushing stone, mulching vegetation, milling hard surfaces, and removing roots and stumps. With a 1,150 mm working width and working depth of up to 150 mm, it provides a versatile solution for agriculture, forestry, landscaping, road and trail maintenance, orchards, vineyards, and land reclamation.

Built using technology developed for PTH’s larger stone crushers, the MicroCrusher combines powerful crushing and mulching capability in a compact machine. The hydraulic drive requires a minimum of 70 L/min at 220 bar and uses six high-performance V-belts to efficiently transfer power to the rotor.

The 1150 model features 40 carbide-tipped tools, an overlapping rotor arrangement, replaceable HARDOX internal armor, and a mechanically adjustable crushing stage. Different tool configurations are available for stone crushing, forestry mulching, or universal applications.

Key features:

• 1,150 mm working width

• Up to 150 mm working depth

• 40 carbide-tipped tools

• 6 high-performance V-belts

• Minimum hydraulic flow of 70 L/min

• Hydraulic pressure range of 220–360 bar

• Mechanically adjustable crushing stage

• Replaceable 10 mm HARDOX internal armor

• Hydraulic rear door

• Approximately 500 kg operating weight

• Stone, forestry, and universal tool options

Ideal for crushing stone, forestry mulching, vegetation and brush clearing, root and stump removal, surface milling, trail maintenance, orchard and vineyard work, and agricultural land preparation.

Available to order from Agri Bar S. Contact us for pricing, availability, and configuration options.
